ChromatoProbe and SnifProbe

Sample Introduction Devices for Mass Spectrometry Sampling and GC and GC-MS Analysis


Aviv Amirav, Hongwu Jing, Alexander Gordin and Shai Dagan (June 2022)

The Concept and Summary of Features

We have designed, built and extensively tested a Direct Sample Introduction (DSI) device (USA and Japan patents [1]) that enables new sampling methods for GC and GC-MS. The DSI was licensed to and available from 1997 by Varian as the ChromatoProbe and later on from Bruker who acquired the Varian lab GC and quadrupole GC-MS business. It is now available by Agilent who licensed and introduced its own DSI under the name Thermal Separation Probe (TSP) (Agilent TSP). It is also available by FLIR under the name PSI Probe, by GL Science under the name DMI (automated DSI) and from Aviv Analytical (Aviv Analytical's ChromatoProbe Website) for mounting on the Agilent 6890 and 7890 GCs and 5973/5/7, 7000 and 7250 GC-MS systems. Over 1700 ChromatoProbes are currently in use worldwide and over one hundred and ten peer review publications were published (updated to 2011) on its various applications as listed at the bottom of this page. This DSI device serves for three different major applications, each with several advantages. As a result, the DSI (ChromatoProbe) is like three devices in a one product hardware:

A. Sample Introduction for Mass Spectrometry -The Cost Effective and Best MS Probe.

The ChromatoProbe device, followed by a short (1 m) capillary column, effectively transforms a conventional GC injector in a GC-MS system (preferably a second GC injector in a GC-MS) into a cost effective alternative to the standard direct insertion probe [2], with the following advantages:

1.  Enables all the traditional functions of an MS probe, including introducing thermally labile and polar compounds as well as high-mass MS calibration and tune and other compounds.

2.  Ideal for developing and optimizing MS-MS and MS-MS-MS methods.

3.  Low cost.

4.  Faster and easier operation and interchange from ChromatoProbe to GC-MS.

5.  The ChromatoProbe employs relatively big vials (1.9-2.4 mm I.D.) and as a result it is much easier to use and introduce samples with it in comparison with standard probe (0.6-0.8 mm vials I.D.). In addition, it uniquely accepts solution samples of solids/powders that are easier to prepare.

6. No need for changing ion source, no need for breaking vacuum, no need for retuning the MS.

7.  Inherently immune against leaks and thus can be operated by untrained personnel and students.

8.  Can serve as a micro chemistry reactor. Enables liquid/solid CI agent introduction, heavy water for D/H  exchange, in vial derivatization and limited temperature pyrolysis.

9.  Field adaptation. The ChromatoProbe can be a true option for an easy future field installation.

10.  Dirty sample and SnifProbe chromatographic analysis capabilities as described below.

B. Extract-Free Dirty Sample Introduction for GC and GC-MS Analysis.

Sampling is performed in a small vial that retains the harmful and non-volatile matrix residue of real world samples and thus eliminates the need for extraction or further sample clean-up [2-5, 13, 17-23]. The sample vial is disposed of after use. Each analysis begins with gentle solvent vaporization (if exists), preferably at a relatively low injector temperature, followed by brief heating of the injector to the desired temperature required for achieving intra-injector thermal extraction and sample compound vaporization. The sample semi-volatile compounds are focused (collected) on the early portion of the separation column and are GC analyzed as usual. This method was extensively tested by us in the analysis of drugs in raw urine and hair as well as pesticides in blended food items and in soil, and was found to have the following advantages:

1.  Lower cost of analysis due to reduction or elimination of sample preparation.

2.  Complex small solid or sludge samples such as bacteria, tissue, gland, hair, blood, urine, crude oil, soil and blended food items can be analyzed.

3.  Efficient thermal extraction. The excellent GC integrity (best among all thermal desorption systems) enables high and reproducible thermal extraction recovery that can potentially be higher and more uniform than that of standard solution extraction (or that of external thermal extraction).

4.  Smaller sample size. A very small sample can be used and the extraction solvent impurities is eliminated.

5.  Higher sensitivity is enabled through the sampling of a large volume concentrated extracts.

6.  Faster chromatographic analysis is achieved as the less volatile matrix compounds are retained in the vial, enabling a lower upper GC oven temperature.

7.  Triple purpose device. The same ChromatoProbe device also serves as an MS probe as above in GC-MS and as a SnifProbe as described below.

C. SnifProbe Gas Sampling Method and Device

SnifProbe is a major additional capability of the ChromatoProbe that extends its use for airborne compounds analysis. It is described in details in references 9 and 41. SnifProbe is based on the use of 15 mm short pieces of standard 0.53 mm ID capillary or PLOT column or silicone rubber (PDMS membrane) tube loaded vials for sampling air born, head space, aroma or air pollution samples. A miniaturized frit-bottomed packed micro vial named MicroSPE was also prepared and served for the sampling of solvent vapors and gases as well as liquid water. Thus, SnifProbe extends the ChromatoProbe range of samples to include gas phase sampling. The short (15 mm) column is inserted into the SnifProbe easy-insertion port and the SnifProbe is located or aimed at the sample environment. A miniature pump is operated for pumping 20-60 ml/min (typically 50 ml/min) of air sample through the sample collection short piece of column. After a pre-selected several seconds of pumping, the short column is removed from the SnifProbe with a tweezers and placed inside a ChromatoProbe glass vial having a 0.5 mm hole at its bottom. The ChromatoProbe sample holder with its glass vial and sample in the short column are introduced into the GC injector as usual. The sample is then quickly and efficiently vaporized from the short sample column and is transferred to the analytical column for conventional GC and or GC-MS analysis.
SnifProbe enables many of the manual SPME, air bags and Tenax tube applications with a few advantages, and is ideal for out of the laboratory sample collection, head space and air born sample analysis:

1. SnifProbe brings the field and process into the laboratory. SnifProbe can be operated in the field or at the process, and the sample columns can be plugged, placed in a small plastic bag, marked and brought to the laboratory for analysis with the full power of lab GC/GC-MS.

2. Thermally labile and semi-volatile compounds such as explosives and CWA can be collected since the trapping column is easier to desorb than Tenax tubes.

3. Compact. SnifProbe has small size and its miniature sample columns, silicone rubber loaded vials or MicroSPE vials are easy to transport and can be sealed for many weeks.

4. Fast sampling and GC analysis. Large sample volume is quickly probed and fast GC analysis (under 1 minute) is enabled with only a small split ratio of 2:1.

5. Uniform response. The narrow column diameter ensures that all molecules are adsorbed. If the sampling time is limited, all the sample compounds are retained.

6. Built-in external protection. Since the adsorption layer is internal, the short sample column can be introduced into difficult locations while lightly touching the matrix. The sniffing column can also be fully covered except its opening.

7. High sensitivity. Since SnifProbe is based on active air pumping, a large sample volume can be quickly probed for increased sensitivity.

8. Dirty/reactive sample analysis capability. Since the sample short columns cost very little they can be employed for dirty or reactive sample analysis and be disposed of after the analysis. (cigarette smoke for example)

9. A broad range of sample column adsorption films and materials is available for sample collection optimization. From thin dimethylsilicone through thick PLOT column films and including the full range of packed column adsorption materials.

10. Very cost effective. SnifProbe is coming with the full power of ChromatoProbe of extract free dirty sample introduction and its use as an MS probe.

11. Field installation. SnifProbe can be operated with a DSI/ChromatoProbe that can be field installed on any GC standard split splitless injector and does not requite a PTV for its sampling.

SnifProbe is available exclusively by Aviv Analytical (Aviv Analytical SnifProbe).

Technical Description

The DSI is based on sample introduction into the GC injector in a small disposable test tube (sample micro vial) that is commercially available for standard probes for their insertion into the ion sources of mass spectrometers (Varian, Walnut Creek CA, Scientific Instrument Services, Ringoes NJ). Most of the standard temperature programmable GC injectors can be adapted to accept a DSI device. In 1997 the DSI became commercially available by Varian (named ChromatoProbe) and is compatible with Varians’ 1078 and 1079 injectors. Thus, in this page will shall name the DSI as ChromatoProbe
The structure and components of the ChromatoProbe, mounted on the Varian 1079 injector is presented in Figure 1. The original septum and its seat were removed and the septum clamp was replaced with a guiding element unit. This unit serves for sealing on the injector body and guiding the sample holder that is inserted through the injector adapter. The liner is the standard large volume liner (3.4 mm ID), which is inverted so that its open end is positioned upward to accept the sample holder. The sample holder was designed for glass test tubes (mirco vials) with 2.5 mm OD, 1.9 mm ID and 6 to 18 mm in length. The standard length is 15 mm and its volume is 40 microLiters. The diameter size restriction depends on the injector liner used. Quantitative liquid sample introduction into the test tube can be performed with a standard 10 microLiter GC syringe (Hamilton 1701N for instance), while the test tube is held with a tweezers (or gloved hand). Solid and powder samples can be introduced with a standard Pasteur pipette directly into the vial. The sample container holder is fabricated from stainless steel (such as the 316 or Inconel), then coated, either with Silcosteel (Restek), or with a high temperature lacquer for surface passivation. The Varian and Aviv Analytical ChromatoProbe are provided with Silcosteel passivation.

Direct Sample Introduction for Mass Spectrometry Studies - The Cost Effective Probe

The device shown in Figure 1 effectively transforms a conventional GC injector into a direct sample introduction (DSI) device (Probe) for the continuous delivery of sample compounds into the MS. The ChromatoProbe/DSI is a low cost and simple device. Even the cost of an additional second GC injector added to the ChromatoProbe device is lower than that of an air lock chamber, by-pass pumping system and rotary pump, and temperature controls involved with standard direct sampling probes.
The GC injector temperature, flow rate and split ratio effectively control the vaporization rate and MS signal. For the application of mass spectrometry direct sampling, it is recommended to use a short column (2 meter, 100 micron ID, no or thin (0.1 micron) film thickness) heated to a relatively high temperature that serves as a fast transfer line. The column temperature should be high enough so that the sampled compounds are not retained on the column. During ChromatoProbe operation, the sample is loaded inside the test tube and the flow rate is increased to a typical flow of 1 ml/min in the microbore short column, resulting in a one second response time. The preferred configuration is to use a dual-injector, dual-column system. One of the columns is the short one for MS probing, and the other is the usual GC separation (analytical) column. Both columns are introduced into the MS via a double-hole ferrule (provided by Varian). The carrier gas flow rate through the short column can be reduced below 0.2 ml/min when not in use, so that it does not affect the conventional GC-MS performance. The analytical column flow rate can be reduced to below 0.4 ml/min during probe sampling.

The ChromatoProbe, used as a direct sampling probe can serve for several applications:

1. Conventional applications of a direct sampling probe. It enables the sampling of solids and powders including high boilers and thermally labile compounds. The fast response time, and the inert inlet and transfer line, provide good response for these sensitive compounds.

2. MS-MS optimization. The ChromatoProbe is an excellent tool for MS-MS method development and optimization. It also enables MSn studies. The ChromatoProbe should be therefore an inseparable part of any package containing MS-MS.

3. Solution sampling. Unlike standard probes, the ChromatoProbe can accept solutions, where the solvent can be gently evaporated at 1 Atm, in the injector, to the open split vent, prior to sampling the solute. Powders can also be sampled with a syringe through their crude solvation.

4. Liquid Agents Introduction. Direct sampling through the GC injector can serve for on-line, separately optimized, reagent introduction into the MS ion source during GC-MS analysis. This procedure may be used in several applications including:
 a) Introduction of a liquid (or solid) compound for serving as a chemical ionization (CI) reagent, with tailored proton affinity.
 b) Introduction of heavy water or deuterated methanol for the exchange of labile hydrogen atoms with deuterium atoms in OH or NH groups for their identification.
 c)   High-mass calibration compounds (such as PFK (perfluorokerosene)) can be constantly introduced for on-line high and/or accurate mass calibration.

5. Micro-Chemistry Reactor. Direct sampling through the GC injector enables the application of selective chemical reactions such as oxidation that requires rough atmospheric pressure, or solution derivatization (inside the micro test tube) [10]. The injector temperature programming enables temperature programmed pyrolysis and material testing studies within the temperature limitations of the system (typically 450 C upper injector temperature).

6. MS-MS Analysis. The ChromatoProbe enables fast medium complexity sample analysis using MS-MS for sample separation and quantitative determination. For very complex mixtures the ChromatoProbe enables extract free sampling (as explained below) followed by GC-MS and/or GC-MS-MS analysis [13, 19].

Suggestions for optimized use of the ChromatoProbe for MS studies:

1. In order to install the preferred configuration of two columns, one for the ChromatoProbe and the other for conventional GC applications, please use a two-hole ferrule (supplied) for the coupling of the two columns together into the MS.

2. If an autosampler is coupled to the GC, the ChromatoProbe device should be located at the front injector, and the autosampler should be coupled to the rear injector.

3. In order to avoid the risk of inlet contamination, it is recommended to introduce solutions and not neat materials. The solvent has to be gently vaporized first at a temperature of 15-20 C above its boiling point (1 min), and then, the inlet has to be further heated to the proper sampling temperature. 5 microLiter of a solution of 2 mg/ml that desorb the sample compound at a rate of 10 ng/sec with split ratio 10:1 (1 ng/sec into the ion source) will produce an appropriate signal for more than 15 minutes.

4. The temperature of the inlet during sampling should be experimentally determined to be the minimum temperature that produces a sufficient signal. This will prevent inlet and ion source contamination as well as assure minimum thermal degradation of thermally labile compounds. (this is unlike with standard probes which require the control of the ion source temperature)

5. The inlet should preferably be operated in the split mode, while the split ratio has to be determined depending on the nature of the sample and the sensitivity required. This prevents MS overloading, reduces inlet contamination and minimizes inlet related dissociation.

6. During the vial holder insertion, the column should be kept at a low temperature (<100 C) to avoid the risk of column damage due to air penetration. Preset conditions of high flow / high pressure may further reduce the probability of air penetration. After inserting the vial and screwing back the vial holder, the temperature of the column should be elevated to a temperature, high enough to allow unretained, immediate elution of the analyte. This can be an automatic feature in the ChromatoProbe method.

7. When the analysis is finished, the vial has to be taken out and disposed of while the empty vial holder is screwed back. The GC inlet and column should be then heated for a short time (few minutes) until there is no trace of the sampled compound in the observed mass spectrum. During that time the split vent should be open. This step is essential only if high cleanliness is desirable.

8. If a GC analysis has to be performed soon after the ChromatoProbe analysis, one can cool down the ChromatoProbe injector, reduce the flow at the ChromatoProbe short column to a minimum of 0.2 ml/min (and thus reduce any ChromatoProbe trace signal, if exists), open its split flow and immediately start a GC run at the second, chromatographic column.

9. New probes should be sonicated with solvents prior to use. A lacquer-coated probe should be thermally cured after coating, following the manufacturer instructions (250 C in air, under a dirt cover, for 30 minutes). A Silcosteel coated probe should be baked at 250-280 C for a few hours while it is in the GC inlet, with carrier gas flowing, and split vent open. Silcosteel coating may be damaged at very high temperatures (over 250 C) in the presence of air.

Dirty Sample Introduction for GC and GC-MS Analysis

The ChromatoProbe can serve as an introduction device for "dirty" untreated samples in any form of liquid, solid, powder or slurry. These include:
 a) Body fluids and other human matrices such as urine [2], blood or plasma, hair [5], tissues and bacteria.
 b) Food items such as blended fruits, vegetables and spices [3-4,13, 16].
 c) Environmental samples such as crude oil, asphalt, soil or dust [15].
 d) Other industrial matrices such as paint, glue and polymers (desorption and/or pyrolysis).
The approach of using the ChromatoProbe for the gas chromatographic analysis of dirty samples may eliminate, or significantly reduce the sample preparation steps of extraction, cleanup and pre-concentration, and allow in-vial chemical reactions such as derivatization. The procedure of analyzing such samples with the ChromatoProbe involves loading the sample into the vial (in a quantitative way), performing gentle solvent vaporization (if a solvent exists), analyte thermal extraction at the inlet, and then continuing with the standard GC analysis. The basic goal in developing a method for a specific sample is to find conditions in which the compounds of interest are selectively and efficiently thermally extracted, without scarifying the liner and column cleanliness. The solvent and other unwanted volatile materials might be vented through the split vent, and non volatile, high boiling and labile matrix elements are left in the micro vial, to be disposed of after the analysis. In Figure 2, we present a suggested strategy of programming the GC parameters in order to obtain "extract free" DSI sampling of dirty samples.

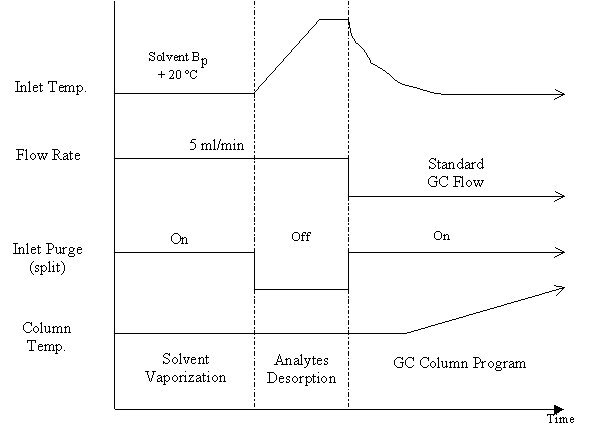

Figure 2  Time Programming Scheme of GC parameters for DSI sampling of "dirty" samples for GC or GC-MS analysis.

The scheme in Figure 2 is a splitless introduction of a liquid (or liquefied) dirty sample introduced with the ChromatoProbe device. If a solid sample is introduced one can skip the solvent vaporization step.

Solvent Vaporization: About 1 min is required for volatilization of up to 4 microLiter of solvent when the inlet is at 15-20 C above the solvent’s boiling point. The purge vent (split valve) should preferably be open at this time to speed-up the vaporization and minimize the amount of solvent and other volatile unwanted compounds entering the column. If the boiling point of the analyte is close to that of the solvent, the split valve should be closed in order to prevent any analyte loss during the solvent vaporization period. A purge flow of more than 20 ml/min is recommended. An introduction of a sample amount of 2-4 microLiter is recommended although up to 25 microliter quantity has been successfully tested. Special care has to be taken in order to avoid solvent splashing and contamination of the GC liner. If the sample contains a mixture of two or more solvents having different boiling temperatures, one can consider slow temperature programming of the inlet at this stage, in order to "gently" evaporate the solvent mixture.

Analyte Desorption: The purge valve is turned off in the extraction period in order to collect all the desorbed molecules. A flow rate of 5 ml/min or more is necessary to achieve efficient sweeping of the desorbed sample compounds. The maximum inlet temperature and hold time should be experimentally determined. The considerations leading to the choice of these parameters are efficient desorption of all the analytes on the one hand, but on the other hand, minimum decomposition and desorption of higher boiling and labile matrix elements that should be retained in the vial. For general pesticide and drug analysis, 250° C for 0.1-0.5 minutes was found to be satisfactory. In pyrolysis experiments (micro organisms, polymers) one should consider efficient decomposition and desorption of the pyrolysis products. The heating rate of the inlet depends on the thermolability of the analytes and matrix. A typical rate can be 150 C/min or more. Fast (forced) cooling of the inlet is essential in order to achieve more precise control over the desorption process as well as to prepare for the next analysis. Thus, a cooled (PTV) injector must be used with the ChromatoProbe.

GC program: After the thermal desorption step, the carrier gas flow rate is reduced to the normal value for optimized GC performance. The purge (split) valve is turned on in order to avoid any solvent peak tail. The oven is heated at the usual program. If volatile analytes (close to the solvent in their elution time) are to be analyzed, it is recommended to start the GC oven at a low temperature that enables column cryo-focusing of the volatile analytes. In some cases, one may need to wait at the column start temperature until all the solvent residue has eluted in order to improve the separation between the residual solvent and the analyte and hence obtain a proper GC peak of the volatile analyte. The upper GC temperature and/or wait period may be reduced since the non-volatile and high boiling matrix residue compounds are retained in the vial.

In Figure 3 below we demonstrate the application of the ChromatoProbe for the fast analysis of cocaine in a single hair of human drug user. For details please read reference 5

Additional Guidelines for the Application of the ChromatoProbe in the Chromatographic (GC and or GC-MS) Analysis of Dirty Samples

1. The sample micro-vial should be handled with tweezers only. The handling with powder free gloved hands can be tested. Similarly, the micro-vial holder should not be touched with hands to avoid fingerprints and dirt being included in the analysis.

2. Solid samples may be blended or dissolved for a more quantitative transfer, as well as for more efficient thermal extraction from the micro-vial.

3. The volume of a 15 mm long vial is ~40 microliters. Up to 25-30 micro liters can be loaded into that vial. Solvent evaporation can be achieved either in the GC inlet (if relatively volatile compounds are to be analyzed) or preferably outside the GC prior to sample introduction. The GC split gas flow can be used for such external evaporation. A special "tool" can help in minimizing the solvent vaporization time.

4. A pressure drop in the inlet occurs when the ChromatoProbe cap is opened during sample introduction and its reverse pressure build up can be too slow. Pressing "Activate" of the method and than "Activate now" and "Start" (in the Varian 3800 GC), immediately after screwing back the loaded vial holder, would enable fast pressure buildup. No such problem exists with constant pressure injectors that have no EFC. The current Varian CP 3800 GC has faster pressure build up and with it this remark can be ignored.

5. The initial column temperature should be low enough to trap the extracted volatile compounds. This is like in a conventional splitless injection with about 2.5 minutes injection time. For example, 50-80 C initial column temperature is desirable for pesticide analysis.

6. Note that the final GC oven upper temperature and time may be reduced compared to conventional GC analysis since the less volatile compounds are retained in the micro-vial. Typically, the upper GC temperature should be higher by no more than 50C from the upper injector thermal desorption temperature. This may save time and extend the column lifetime.

7. At the end of the analysis, please dispose of the sample micro-vial. Do not re-use micro-vials. The micro-vial holder should only be removed from the adapter after both the GC oven and injector were cooled and a carrier gas purge flow from the DSI device protects the column. Standard columns are fully air safe below 140C.

8. In addition to passivation of the micro-vial holder, analysis of thermally labile sample compounds can be facilitated with a short micro-vial (6 mm long), minimizing the interaction between the analyte and the vial and allowing extraction at a lower temperature. The standard 15 mm long micro-vials can be cut (like a column) to the desirable length. Handle the micro-vial carefully while cutting to avoid contamination. Such short vials can be ordered from SIS (Ringoes, NJ, USA). The split flow rate can be higher as well.

9. Test your method for thermal vaporization efficiency, reproducibility and long term stability before beginning routine analysis.

10. Dirty sample fast GC analysis with the ChromatoProbe can be explored and employed using the 2 meter microbore column supplied for probe sampling, while implementing a proper GC program for dirty sample analysis. The major problem with this short column is its limited sample capacity but it can help in the study of the principles of use of DSI for dirty sample analysis. Actually, this is similar to using the ChromatoProbe as a probe with a relatively cool initial GC temperature. A fast GC or GC-MS analysis can be achieved with fast GC oven temperature programming rate.

SnifProbe suggestions and recommendations:

The use of SnifProbe for gas analysis is the latest development that extends the capabilities of the ChromatoProbe and thus only preliminary remarks are mentioned here. Its use and applications is described in details in reference 9. SnifProbe, unlike ChromatoProbe, is not yet commercially available, but we very much hope it will be. We consider its use as relatively simple and encourage every one who performs gas analysis to explore it.

In Figure 4 below the SnifProbe structure and various components are outlined. For further details reference 9 is recommended for reading and can be provided upon request.

In order to effectively start working with SnifProbe please consider the following list of advises:

1. A miniature pump such as ASF model 3003 should be used for 6-60 ml/min air pumping. We found that a Mott 250 ml/min flow restrictor element at the input of the pump stabilizes its flow rate and reduces it to about 30 ml/min.

2. An SGE removable needle standard syringe such as model 10R can be modified at the machine shop so that its head will accept a 0.7 mm OD columns with two Parker number 1 Viton O-Rings like a Wilson seal.

3. The modified syringe needs to be connected with a Wilson seal into the air pump.

4. Please use a ChromatoProbe standard glass vial and make a 0.5 mm hole at its bottom. The hole should be small enough to prevent the sample column from falling down. The glass vial desirable length is 10 mm.

5. Please use gloves and cut a 0.53 mm ID column of your choice into several pieces with 15 mm length. The length should be reproducible. The preparation of MicroSPE is a little more demanding and may require our consultation.

6. For volatile compound analysis with boiling points in the range of 0-150 C please use the Chrompack CarbBOND PLOT column. For compounds in the 80-250 C boiling point range the Chrompack PoraBOND PLOT column seems ideal. For semivolatile compound in the 150-400 C boiling point range a standard Rt5 column with 5 micron film is ideal. For solvents and or permanent gases MicroSPE vials should preferably be used. A MolSieve PLOT column can be tested with a standard vial without a hole for the analysis of permanent gases.

7. Please wait at least 3 minutes after the DSI sample holder was removed from the GC injector to let it cool down to avoid its higher temperature from inducing undesirable vaporization. Alternatively and preferably please use the second vial holder that is at room temperature (provided with the ChromatoProbe kit).

8. The GC injector temperature can be in the range of 150-300 C for SnifProbe sample column  desorption, depending on the application and the column used.  Low injector temperature can be used with injector temperature programming but generally no injector temperature programming is necessary.

9. Please use tweezers for sample column handling and avoid touching it or making contact with a dirty surface.

10. For field analysis the use of a modified HPLC 1/16 inch Peek union as a storage device is recommended as shown in the SnifProbe figure

11. Every analysis should be tested and optimized first at the laboratory. The pumping time and way of ChromatoProbe sample container insertion should be reproducible for achieving reproducible results.

Demonstrations and Applications:

35 figures of demonstrations and applications are shown in the ChromatoProbe and SnifProbe booklet that is available on request. They were achieved using several combinations of the ChromatoProbe device with several GCs, GC detectors and MS systems. The technology of supersonic molecular beam mass spectrometry (SMB-MS), including fast GC-MS and unique ionization methods of electron ionization (EI) in SMB and hyperthermal surface ionization (HSI), is reviewed in references [6, 7]. HSI is implemented for the analysis of drugs in hair in reference [5]. Detection with the pulsed flame photometric detector (PFPD) is reviewed in references [3, 8]. The DSI-PFPD-MS combination is reviewed in reference [4].
The issues that are addressed and demonstrated in ChromatoProbe and SnifProbe booklet are:

1. MS probe sampling.
2. Thermal desorption efficiency and characteristics in dirty sample analysis. In that part we demonstrate the effect of flow rate and extraction temperature on the extraction efficiency and selectivity.
3. Analysis of drugs in untreated raw human urine.
4. Fast analysis of drugs in an untreated single human hair.
5. Analysis of pesticides in fruits, vegetables and spices.
6. Sensitivity enhancement employing large volume extract introduction.
7. Analysis of pesticides in soil - an environmental sample.
8. ChromatoProbe-GC-PFPD-MS combination: In the analysis of trace levels of pesticides in complex matrices, detection capability and mass spectral library identification is often hampered by the co-elution of matrix compounds. Simultaneous PFPD-MS analysis is performed with column effluent splitting between these two detectors. The resulting PFPD chromatograms are always much simpler due to its selectivity and exhibit better sensitivity than that of the MS. Accordingly, the PFPD chromatogram serves as a marker. At the PFPD given exact elution time, the resulting mass spectra are examined for unique mass peaks, and precise background subtraction is performed for improved library identification. Moreover, the information on the presence of P and/or S atoms in the analyte can be incorporated in a constrained library search (such as the NIST sequential search), resulting in lower identification levels. Major anticipated applications of the PFPD-MS approach are pesticide analysis, CWA detection and identification and unknown sulfur compound identification in complex matrices. The combination of DSI sampling with PFPD-MS analysis is an integrated approach for truly fast screening and confirmation. The PFPD-MS method is further explained in detail in reference [4].
9. SnifProbe applications including the analysis of BTX in air, cigarette smoke, mercaptanes in domestic cooking gas, ethanol in human breath after beer drinking, trace level chemical warfare agent simulants in air, coffee aroma and perfume in air.
10. SnifProbe with MicroSPE sample trap applications including the analysis of solvent vapors, SO2 in air and BTX in water.

In Figure 5 below, the use of SnifProbe for the sampling and analysis of coffee aroma is demonstrated. A GC with PFPD system was used for the selective detection of sulfur compounds in the aroma of instant coffee. Note the much greater abundance of sulfur compounds in the aroma of the Taster's Choice brand over that of the Jacobs brand.
