Example 2



Figure: State Diagram
\begin{figure}\psfig{file=states.ps,width=6in,clip=}
\end{figure}

Lets define a state machine with two states s1, s2.

Formally, in the example we have:

time: $T=\{1...N\}$

states: $S = \{s_1,s_2\}$

actions: $A_{s_1}=\{a_{11}, a_{12}\}, A_{s_2}=\{a_{21}\}$

reward: rt(s1,a11) = 5, rt(s1,a12) = 10, rt(s2,a21) = -1

final reward: rN(s1) = 0, rN(s2) = 0

transition function: Pt(s1|s1,a11) = 0.5, Pt(s2|s1,a11) = 0.5

Pt(s2|s1,a12) = 1, Pt(s2|s2,s21) = 1

Now we want to maximize the return. First we compare two deterministic policies:

$\pi_1$- always chooses a11 when in state s1.

$\pi_2$ - always chooses a12 when in state s2.

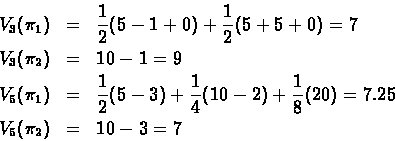

Recall that $V_N(\Pi)$ is the expected return of policy $\Pi$ in N time steps.

\begin{eqnarray*}V_3(\pi_1) & = & \frac{1}{2}(5-1+0) +\frac{1}{2}(5+5+0)=7 \\
V...
...{4}(10-2)+\frac{1}{8}(20) = 7.25 \\
V_5(\pi_2) & = & 10 - 3 = 7
\end{eqnarray*}


Notice how in shorter time frames $\pi_2$ is the preferable policy, while in longer ones, $\pi_1$ brings on the higher returns.

Lets try determining the best policy. We do this by looking first at the reward gained in the last step, for N=2:

\begin{eqnarray*}Q_2(s_1,a_{11}) & = & 5 \\
Q_2(s_1,a_{12}) & = &10
\end{eqnarray*}


In this case:

\begin{eqnarray*}V_2(s_1) & = & 10 \\
V_2(s_2) & = & -1
\end{eqnarray*}


When N=2, The optimal action from s1 is a12.

For N=3, we use the optimal policy for N=2, after we do one action.

\begin{eqnarray*}Q_3(s_1,a_{11}) & = & 5+\frac{1}{2}V_2(s_1)+\frac{1}{2}V_2(s_2)...
...}*(-1) = 9.5 \\
Q_3(s_1,a_{12}) & = & 10+ V_2(s_2) = 10 - 1 = 9
\end{eqnarray*}


Hence, when N=3 the optimal action from s1 is a11.
